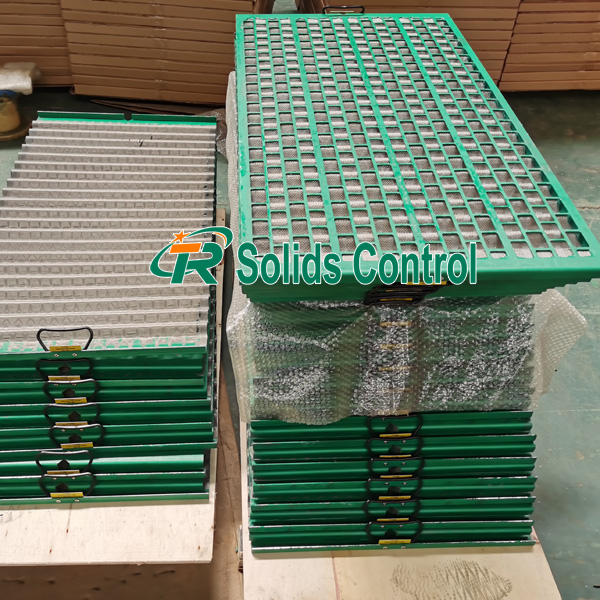

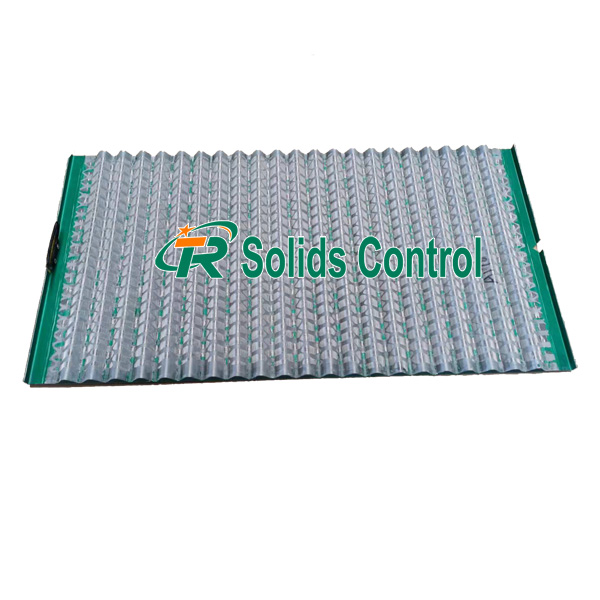

The Hyperpool HYP shaker screen is a type of high-capacity corrugated screen for use in Hyperpol series of shale shakers. The screen's design increases the non-blanked screening area, leading to higher processing capacity, superior solids separation, and reduced fluid loss in drilling operations

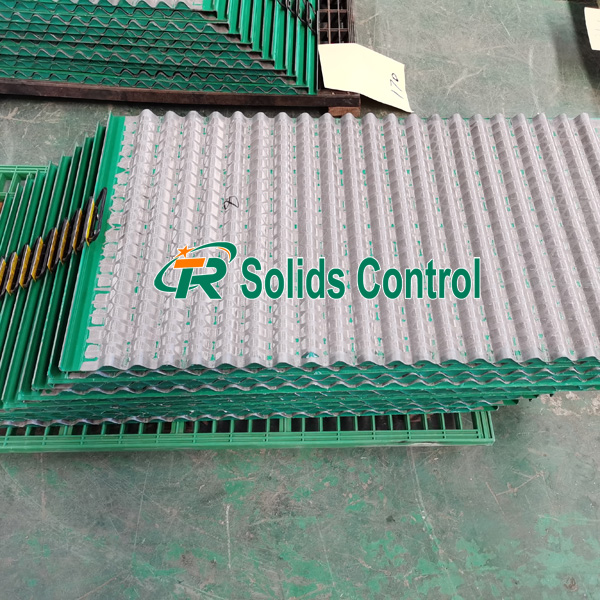

Hyperpool Screen is designed for the replacement screen of Hyperpool Shakers.Hyperpool  Screen is also known as HYP Screen.

Key features

• Pinnacle technology: The most significant feature is its pinnace type screen technology, which uses a corrugated, or "wavy," screen surface instead of a flat one. This design offers a greater surface area for the same footprint, with some variations providing up to 45% more non-blanked area than conventional screens.

• Enhanced capacity: The increased screening area allows the shale shaker to process a larger volume of drilling fluid in a shorter time. This high-capacity performance reduces drilling costs and improves efficiency.

• Leak-proof seal: The Hyperpool shaker's concave screen bed and proprietary compression system create a tight, leak-proof seal with the screen panels. This prevents solids from bypassing the screen and re-entering the drilling mud system.

• Ease of installation: The screen panels are designed for quick and simple installation. The single-side screen compression system allows for screen changes in less than a minute per panel, reducing maintenance time and improving safety

Hyperpool HYP Shaker Screen Technical Parameter

Application area


Applications - in the oil and gas industry, namely drilling oil and gas wells.

Adaptable Shale Shaker Model

Hyperpool HYP Shaker Screens are used as the substitute screen for:

• Derrick Hyperpool 4-panel shaker.

• Derrick Triple Hyperpool shaker.

• Derrick Dual Hyperpool with mud cleaner.

• Derrick Hyperpool VE (Vapor Extraction).
