Replacement Screens for Derrick Hyperpool PWP
Replacement Screens for Derrick Hyperpool PWP are used as for:
- Derrick Hyperpool 4-panel shaker.
- Derrick Triple Hyperpool shaker.
- Derrick Dual Hyperpool with mud cleaner.
- Derrick Hyperpool VE (Vapor Extraction).
-
Product Struction

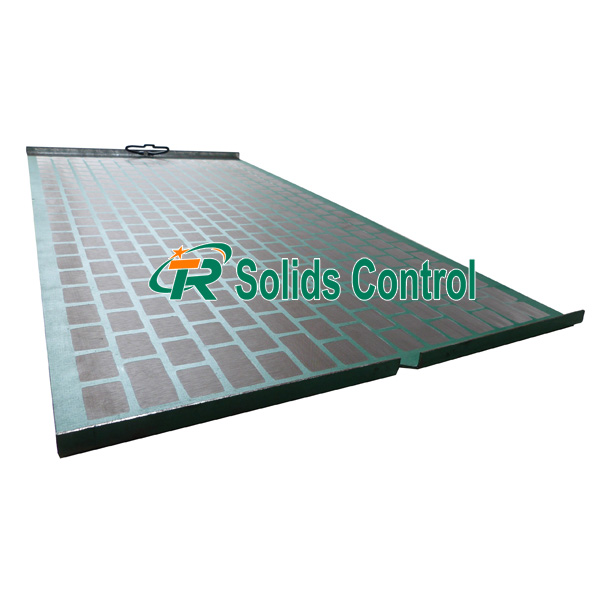

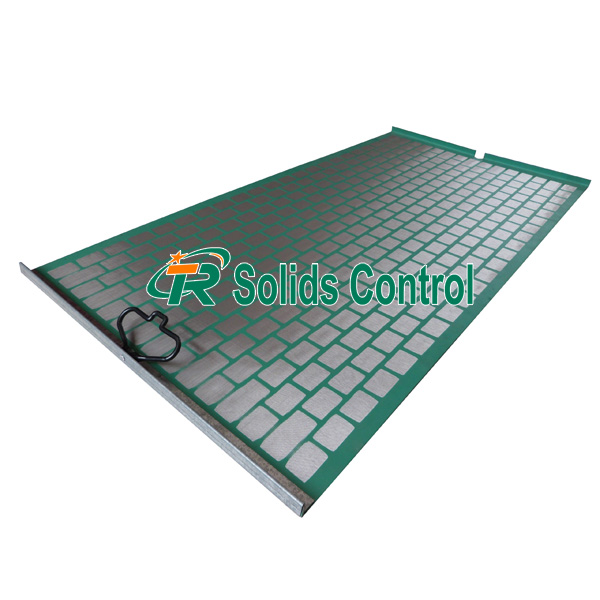

Replacement Screens for Derrick Hyperpool PWP is designed for the replacement screen of Derrick Hyperpool shale shakers. There is an operating handle on one side of the screen and a triangle breach in the center of the opposite side. Thanks to he machine assembled backside seal rubber, even the strip appears a small broken part, the other parts will be steady on back panel still. The most obvious advantage of Hyperpool PWP screen is better resistant to oil. And mesh sizes are commonly available from API 40 to API 270.
Replacement Screens for Derrick Hyperpool PWP are used as for:
Derrick Hyperpool 4-panel shaker.
Derrick Triple Hyperpool shaker.
Derrick Dual Hyperpool with mud cleaner.
Derrick Hyperpool VE (Vapor Extraction).
Competitive Advantage of Replacement Screens for Derrick Hyperpool PWP：
Stainless steel 304/316 wire mesh for longevity.
Increase shaker capacity and reduce mud loss.
Scientific & reasonable cost control system for competitive price.
Higher flow rates without sacrificing cut point integrity.
API RP 13C (ISO 13501) compliant.
Adequate inventory in the shortest time to meet customers' demand.
Warranty Period: 1 year.
Working Life: 400–450 hours.
Technical Parameter
| Screen Designation | Mesh Type | API RP 13C Designation | Conductance Number | D100 Separation (microns) | Layer No. | Weight (kg) |
| TR-PWP DH-A325 | DX | API 325 | 0.39 | 44 | 2 or 3 | 4.2 |
| TR-PWP DH-A270 | DX | API 270 | 0.67 | 57 | 2 or 3 | 4.2 |
| TR-PWP DH-A230 | DX | API 230 | 0.71 | 68 | 2 or 3 | 4.2 |
| TR-PWP DH-A200 | DX | API 200 | 1.32 | 73.3 | 2 or 3 | 4.2 |
| TR-PWP DH-A170 | DX | API 170 | 1.34 | 85.4 | 2 or 3 | 4.2 |
| TR-PWP DH-A140 | DX | API 140 | 1.89 | 104 | 2 or 3 | 4.2 |
| TR-PWP DH-A120 | DX | API 120 | 1.89 | 117.8 | 2 or 3 | 4.2 |
| TR-PWP DH-A100 | DX | API 100 | 2.66 | 142 | 2 or 3 | 4.2 |
| TR-PWP DH-A80 | DX | API 80 | 2.76 | 170.4 | 2 or 3 | 4.2 |
| TR-PWP DH-A70 | DX | API 70 | 3.33 | 203 | 2 or 3 | 4.2 |
| TR-PWP DH-A60 | DX | API 60 | 4.1 | 268 | 2 or 3 | 4.2 |
| TR-PWP DH-A50 | DX | API 50 | 5.17 | 285 | 2 or 3 | 4.2 |
| TR-PWP DH-A40 | DX | API 40 | 8.64 | 439 | 2 or 3 | 4.2 |
| TR-PWP DH-A35 | DX | API 35 | 9.69 | 538 | 2 or 3 | 4.2 |
| TR-PWP DH-A20 | DX | API 20 | 10.88 | 809 | 2 or 3 | 4.2 |
| * D100: Particles this size and larger will normally be discarded.* API: Corresponding API sieve equivalent as per API RP 13C.* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing. | ||||||
